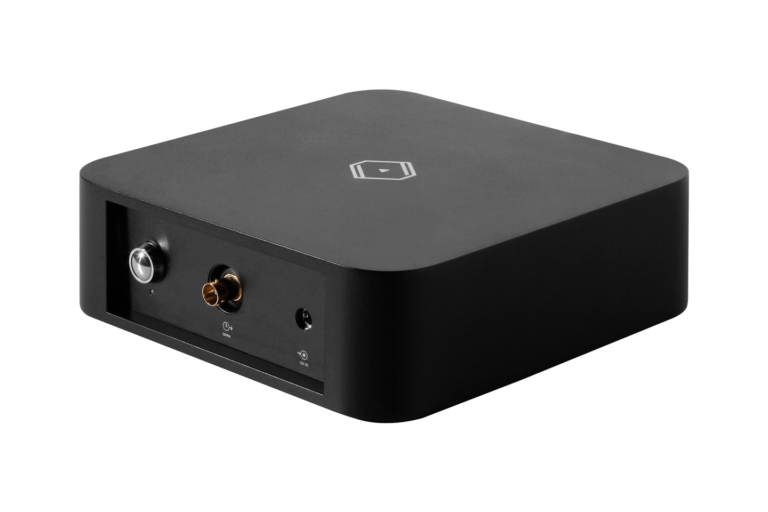

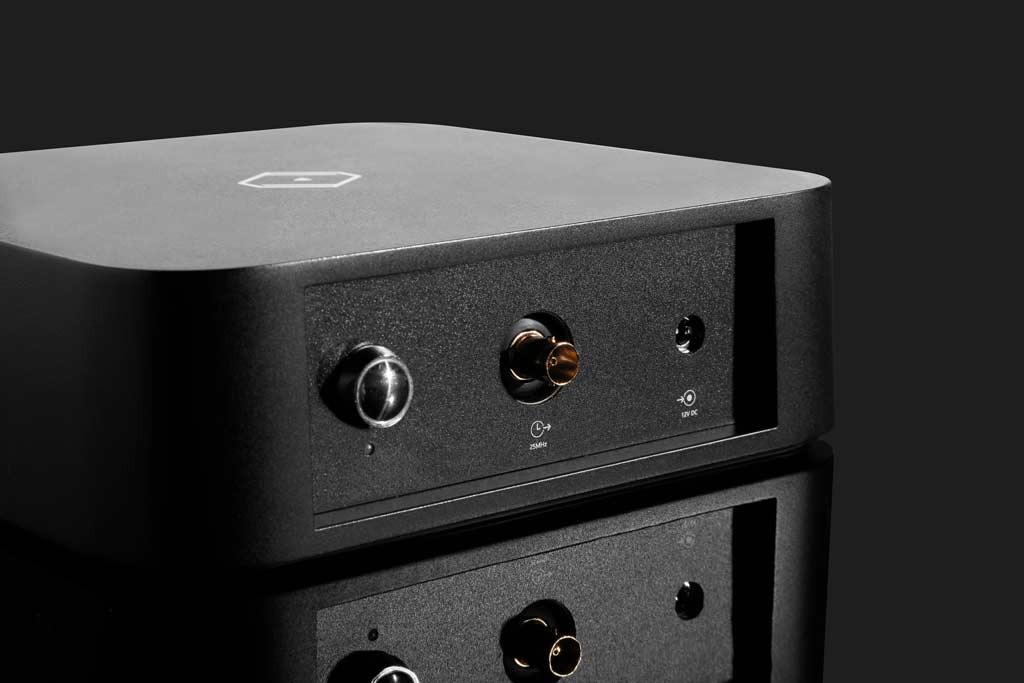

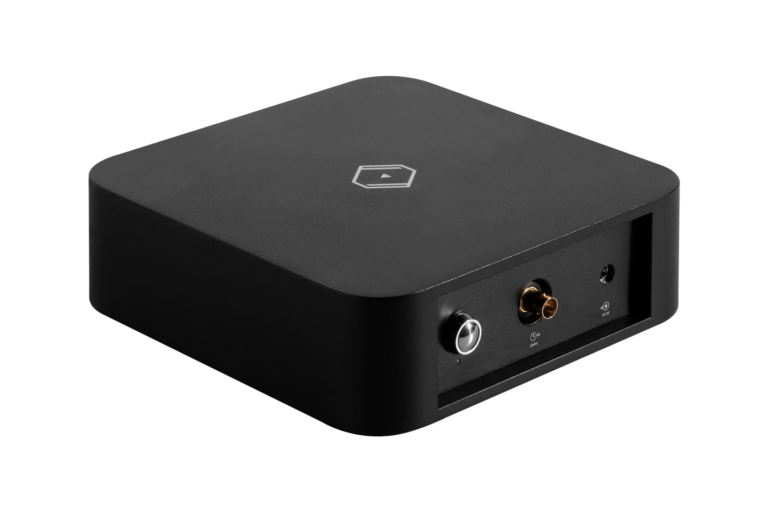

SILENT ANGEL GENESIS GC CLOCK
The HiFi-Grade Word Clock Precisely Delivers Superior Streaming Quality
Experience Hi-Fi-Grade Precision Audio
Focused on Enhancing Listening Environment Precision, the Genesis GC clock enhances audio quality by utilizing a premium clock source and Silent Angel’s proprietary ultra-low noise, high precision, and low phase error HiFi-grade clock technology.
Exclusive and Innovative Word Clock Technology
- TCXO – High Precision Clock Signal – Minimizes Network Latency and Jitter Problems
- Advanced High-Frequency Filters – Effectively Reduce Noise for Unmatched Audio Quality
- Highly Permeable EMI Noise Absorber – Minimize Noise and Vibrations to the Greatest Extent
Designed for Precision, Focused on Listening Environment
Tailored Precision for Optimal Hi-Fi Performance, In digital listening environments, 10MHz remains the most common word clock frequency, but more audiophiles opt for the 25MHz frequency, optimized for audio and networking devices. Genesis GC offers a choice between 25MHz or 10MHz, allowing you to select the best clock frequency for your setup. It delivers exceptional audio performance for your Hi-Fi system while remaining a cost-effective upgrade solution.
Isolated for Pure Performance, unlike built-in word clocks that share system resources and face interference, the stand-alone Genesis GC operates independently, delivering a cleaner, more stable clock signal. By isolating it from system noise, electrical pulses, and jitter, Genesis GC ensures unmatched precision and guarantees the purest clock signal, significantly enhancing audio performance.
Specifications

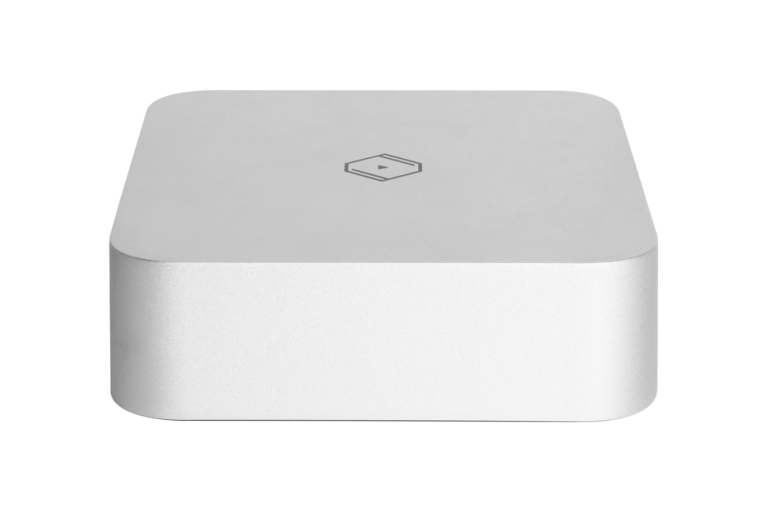

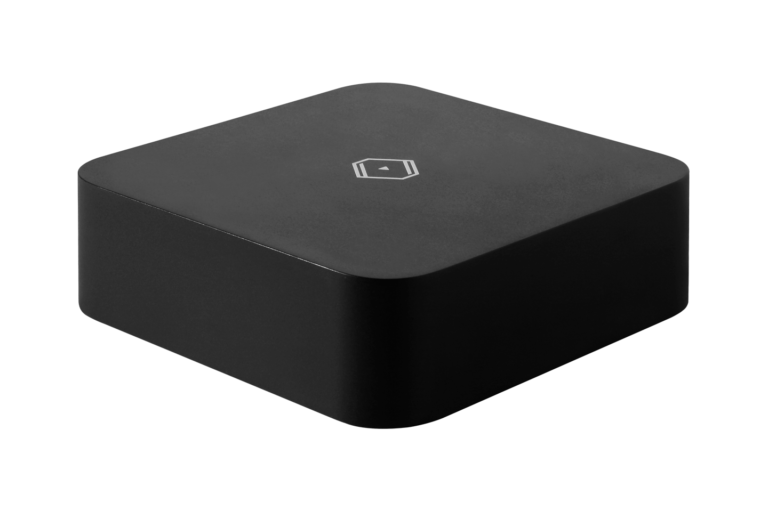

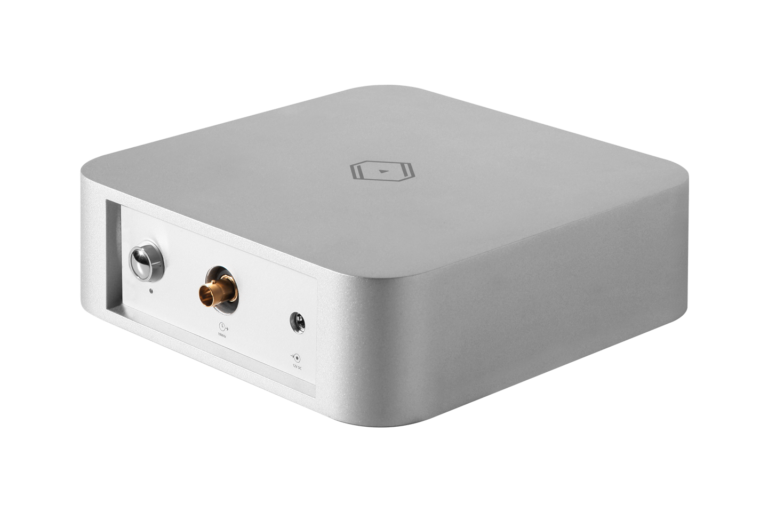

| Available Color | Black, Silver |
| Clock Option | 10MHz, 25MHz |
| Power Input | (DC) 12V/1A, 1.2W (5.5mm x 2.5mm connector) |

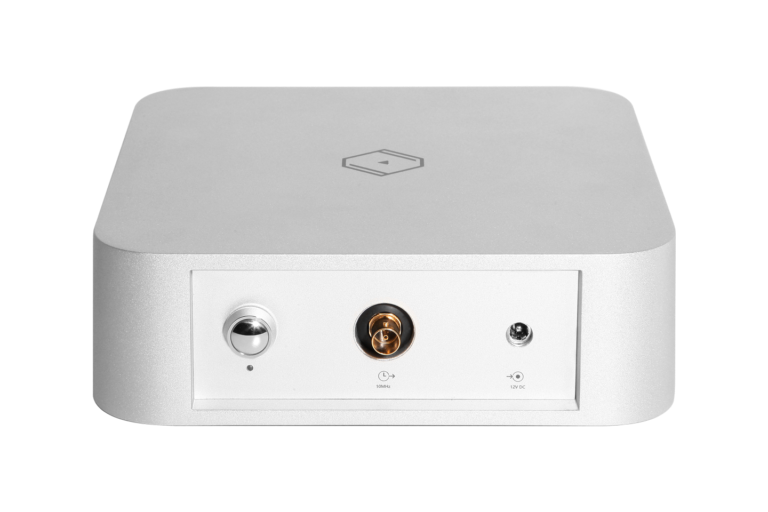

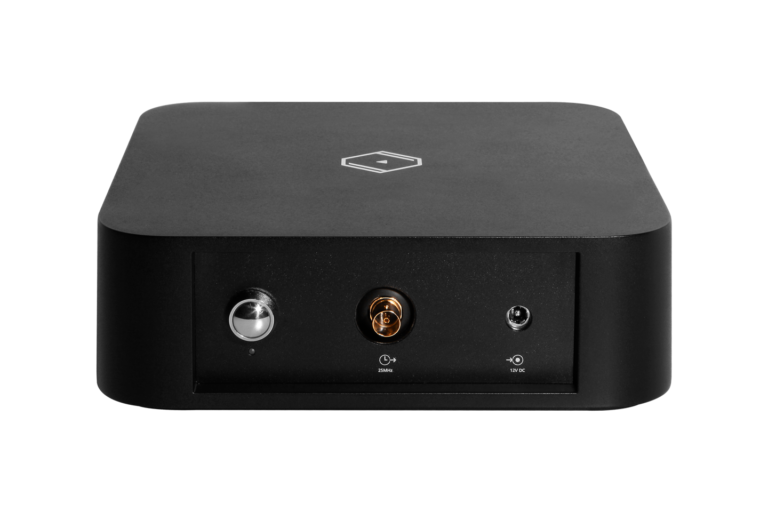

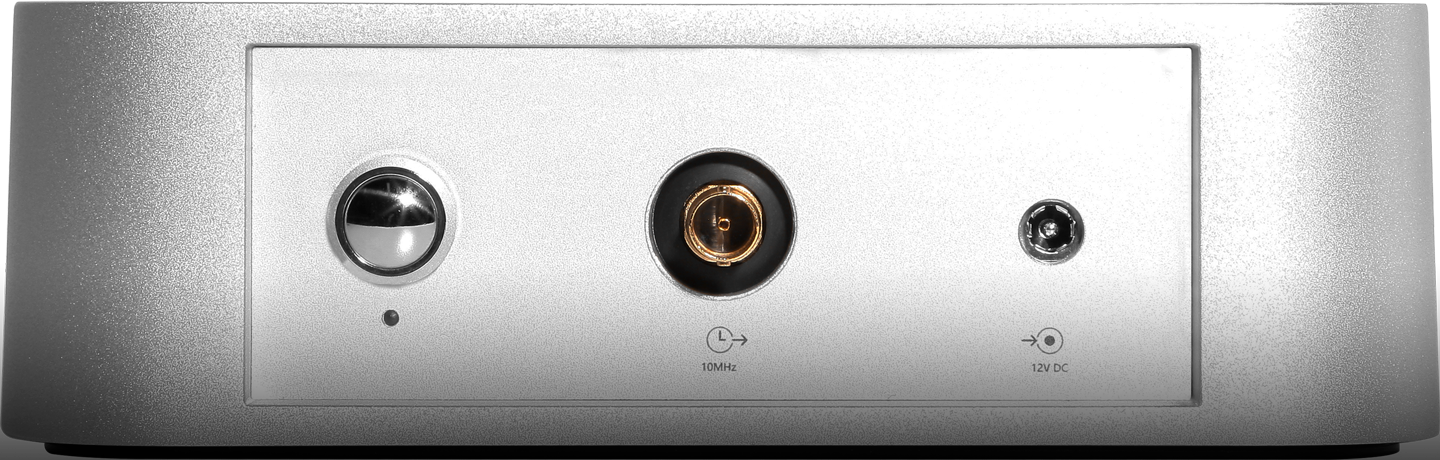

| Clock Output Port | 1 Port (BNC, gold-plated) |
| Clock Output Port Impedance | 50 / 75 ohm auto-detection (default is 50 ohm) |
| Temperature | Operating: 32 ~ 86 °F (0 ~ 30 °C) Storage: -4 ~ 158 °F (-20 ~ 70 °C) |
| Humidity | Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 95% RH (non-condensing) |
| Dimensions | 200(W) * 62(H) * 200(D)mm 7.88(W) * 2.45(H) * 7.88(D) inches |
| Weight | Net: 2.8kg (6.18lbs) / Gross: 3.6kg (7.94lbs) |
| Certificate | CE, FCC, PSE |
