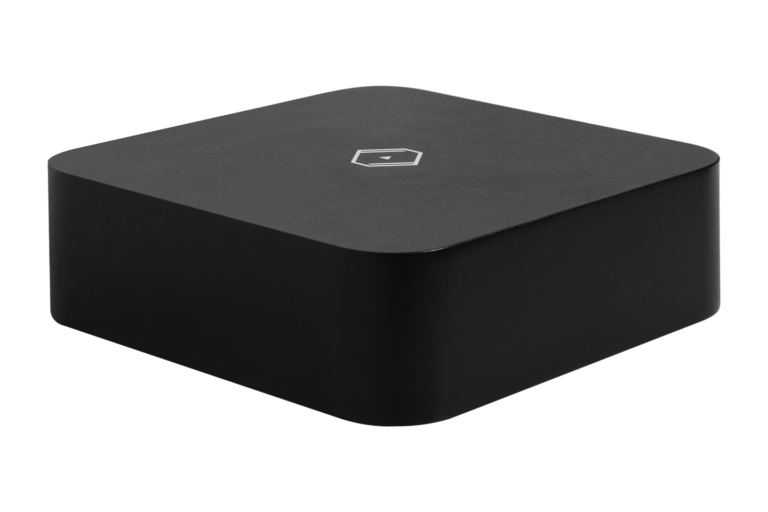

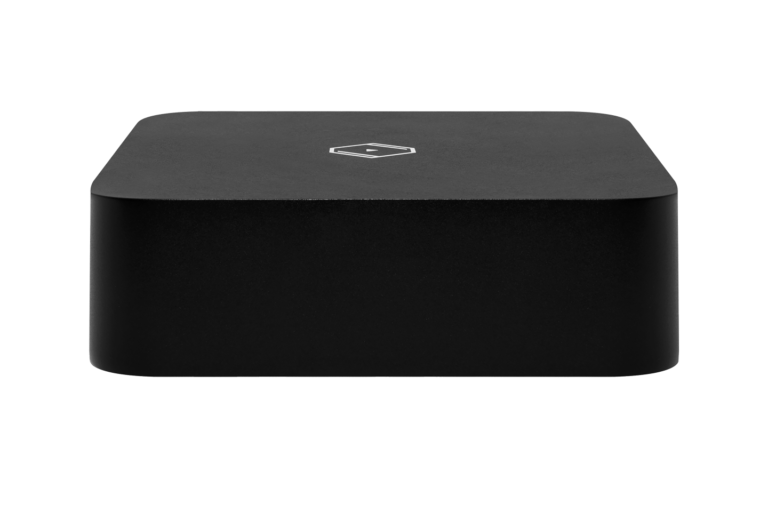

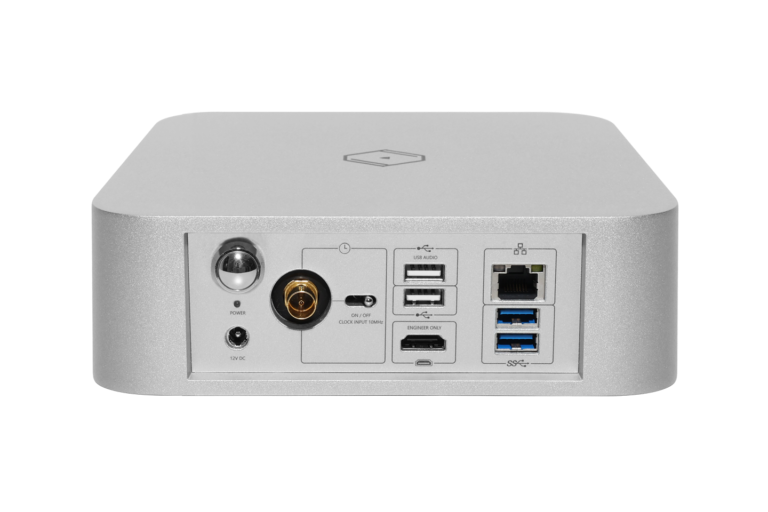

SILENT ANGEL RHEIN Z1C MUSIC SERVER
The Perfect Entry-Level HiFi Music Server, Delivering Uncompromised Streaming Experience
A Shiny New Product in HiFi Music Server Market
Enhanced Interface For High-Fidelity Digital Music.
Elevate Audio Quality with Clock Selector Utilize an external 10MHz clock source connected to the Z1C for precise timing and optimal performance. By selecting the appropriate clock source, you can further enhance the quality of your audio playback and immerse yourself in a truly captivating listening experience. Versatile Audio Outputs with Expandable DAC connectivity. Optimized USB Audio port for rich high-definition digital signal delivery, meeting diverse connection needs.

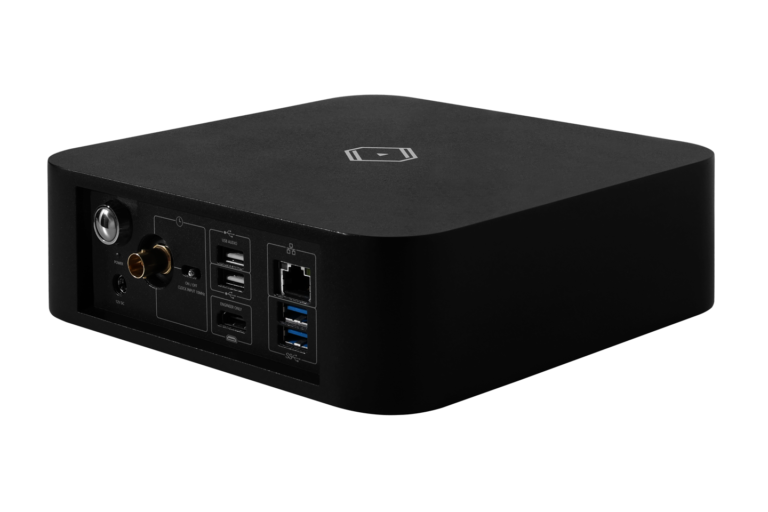

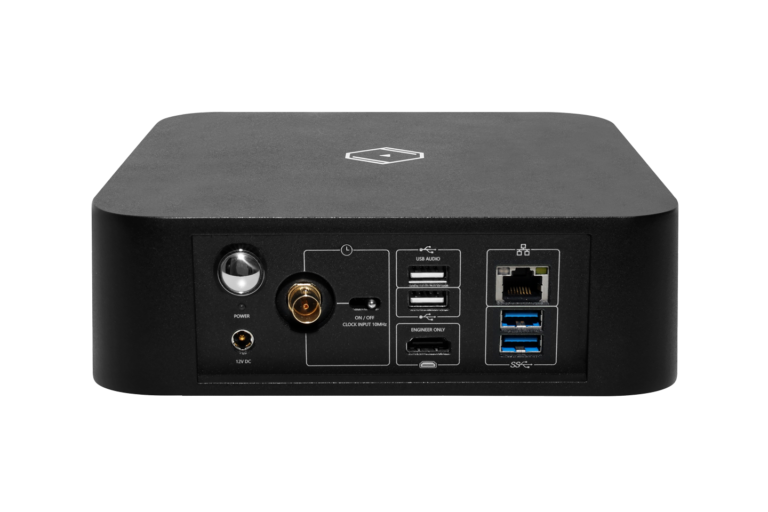

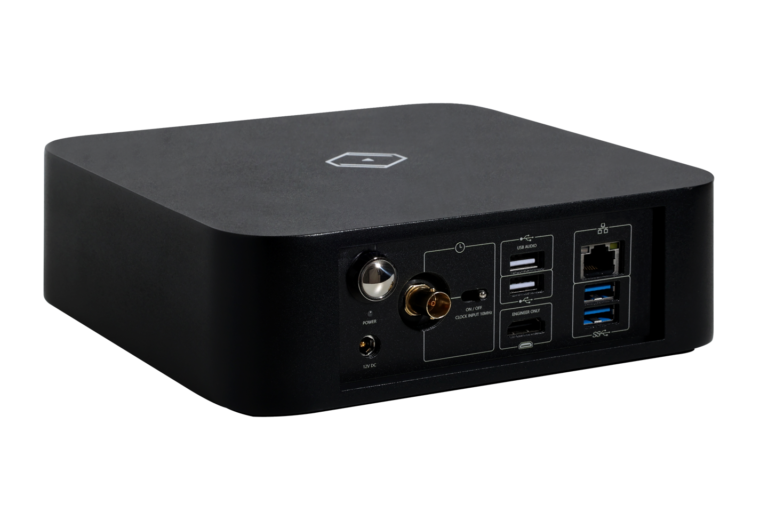

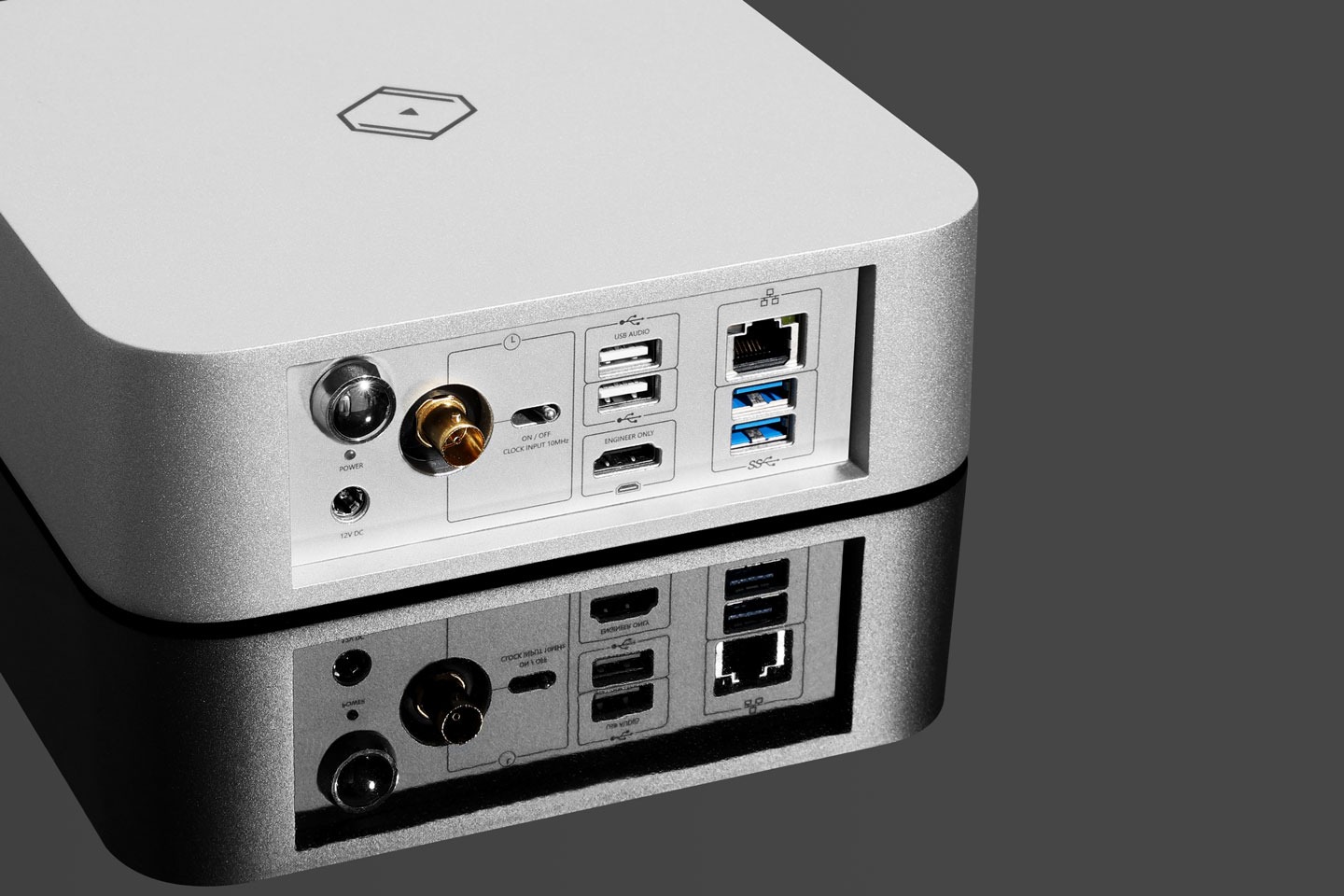

External 10MHz Clock Input.
Utilizing High-Precision TCXO Clocks and optimizing the clock peripheral circuits, Z1C minimizes network latency and jitter to vanishingly low levels. Equipped with an internal/external clock selector switch, Z1C enables seamless switching between internal and external clock sources.
Abundant Streaming Music Services.
Leading Music Streaming Platforms Embedded, Offering MQA Audio Decoding and Seamless Access to High-Quality Online Music Content through Various Sources Including Qobuz, Spotify Connect, DLNA, Airplay2 and Internet Radio.
Specifications

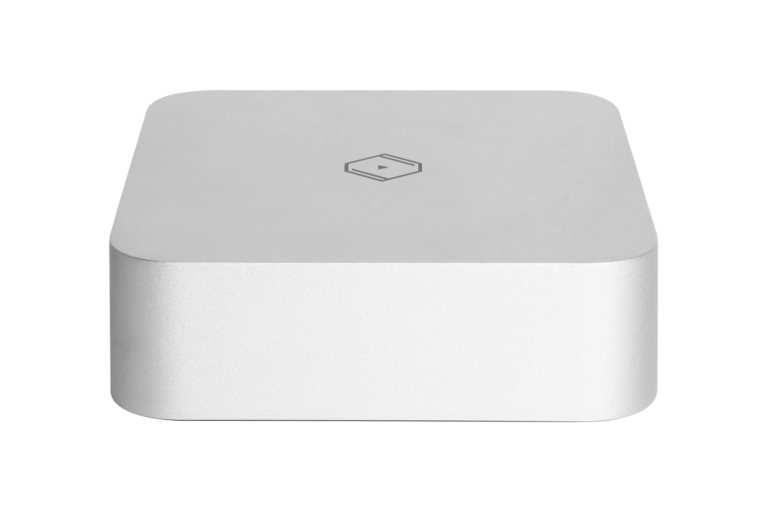

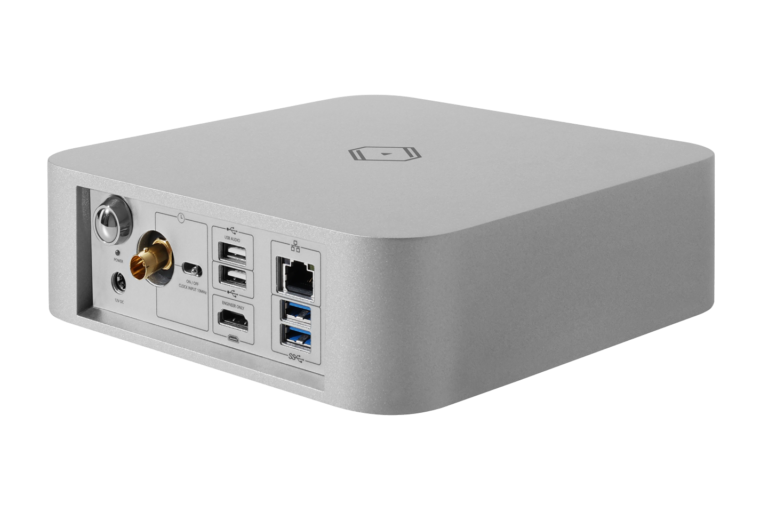

| Available Color | Black / Silver |
| CPU | Intel Quad-core CPU J4125 |
| RAM | 8GB |
| Storage | NVMe SSD, 250GB / 1TB /2TB / 4TB |
| Audio Format | AAC, M4A, MP3, OGG, FLAC, WAV, ALAC, DSD (DSF, DFF), WAV64, AIFF, CUE Files, WMA, APE *Max. Supported DSD Sample Rate: DSD256 (11.2MHz) |
| Ethernet | 1GbE x 1 |
| USB Audio Port | USB Audio Port x 1 |
| Expansion USB Port | USB 3.1 x 2 USB 2.0 x 1 |
| External Clock Input Port | 10MHz x 1 |

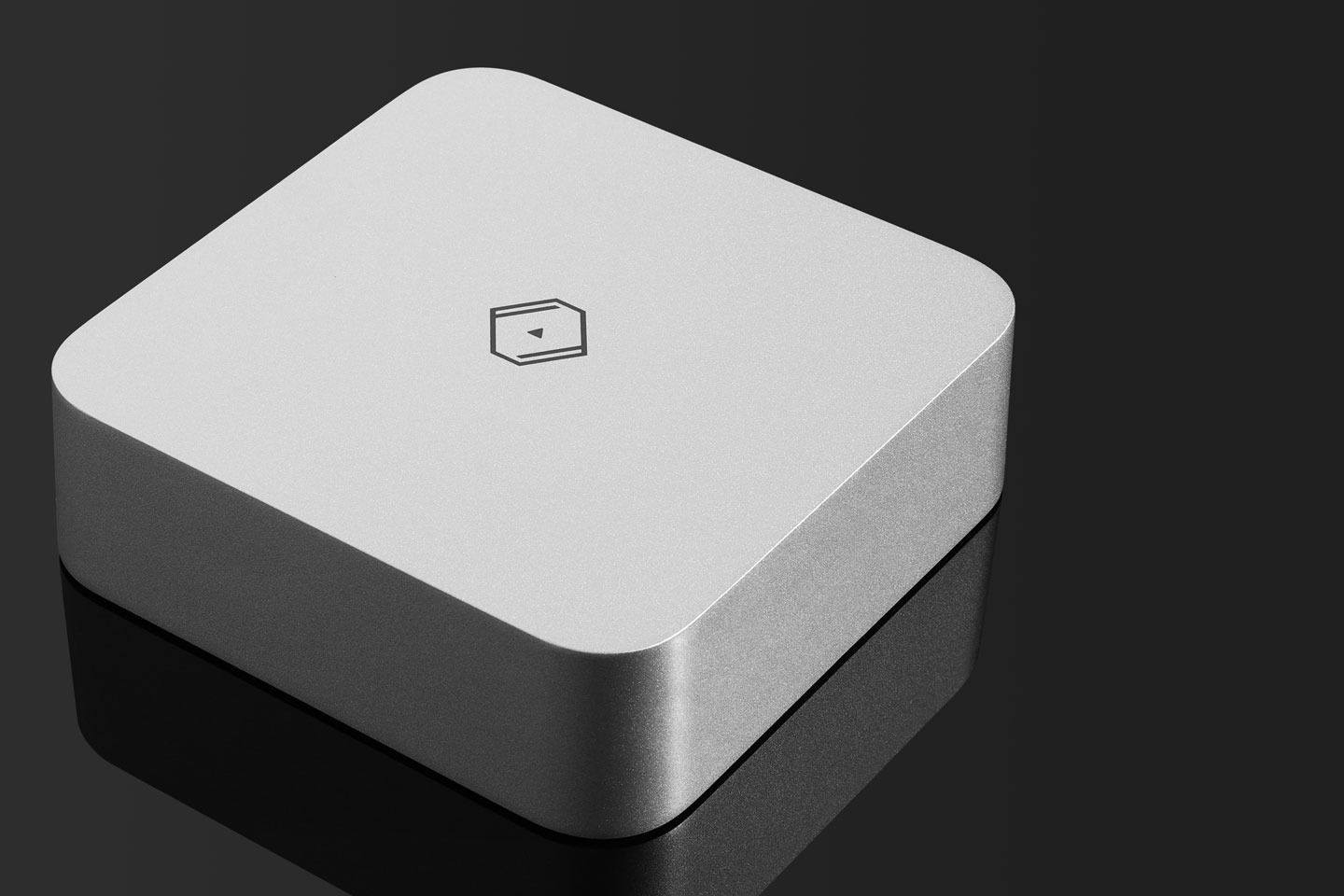

| Chassis Material | Aluminum alloy chassis |
| Input Power | External power 12V / 3A (5.5mm x 2.5mm connector) |
| Temperature | Operating: 32 ~ 86 °F (0 ~ 30 °C) Storage: -4 ~ 158 °F (-20 ~ 70 °C) |
| Humidity | Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 95% RH (non-condensing) |
| Dimension | 7.87(W) inch x 2.56(H) inch x 7.87(D) inch 200(W) mm x 65(H) mm x 200(D) mm |
| Weight | 7.5lbs / 3.4kg |
| Certificate | CE, FCC |
