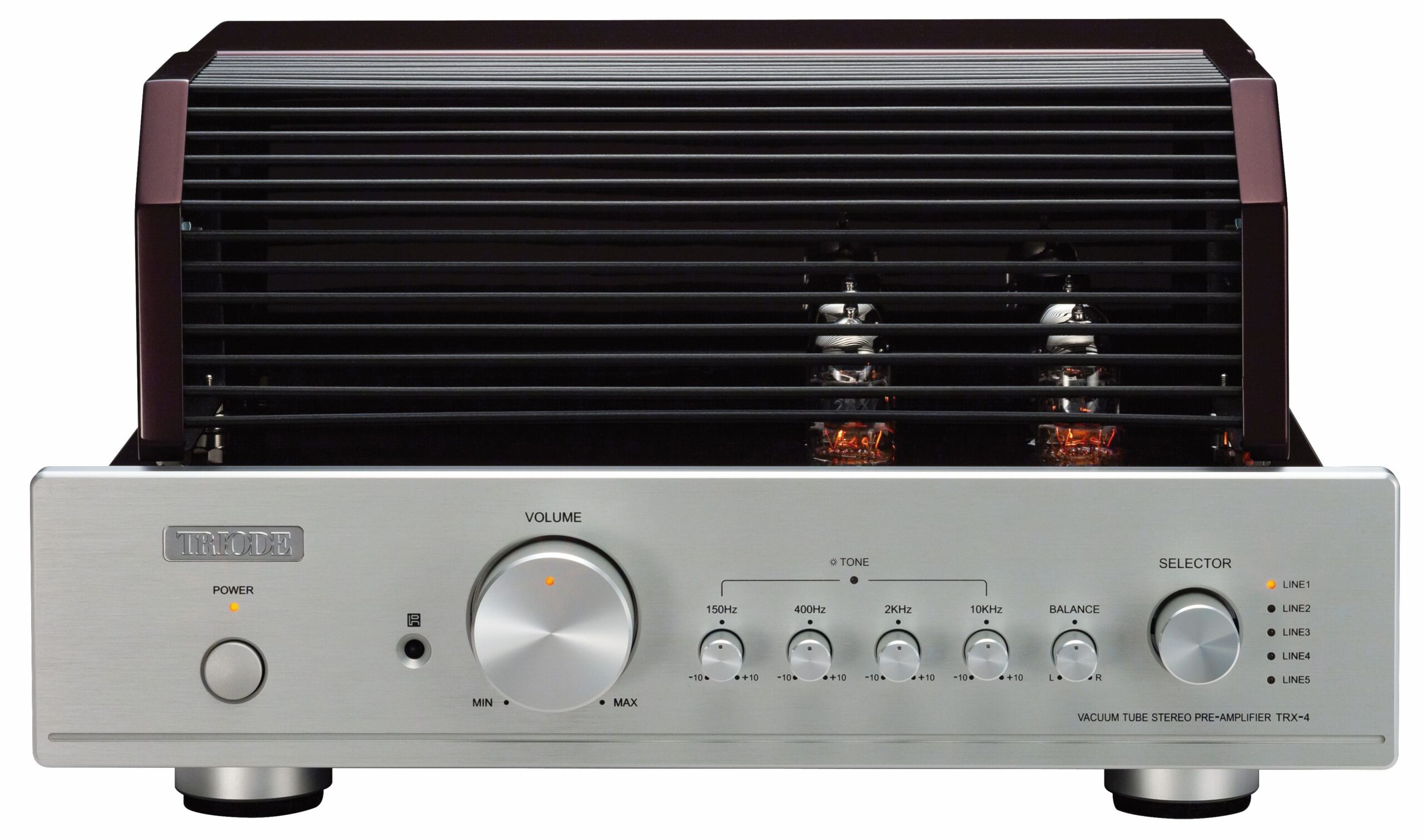

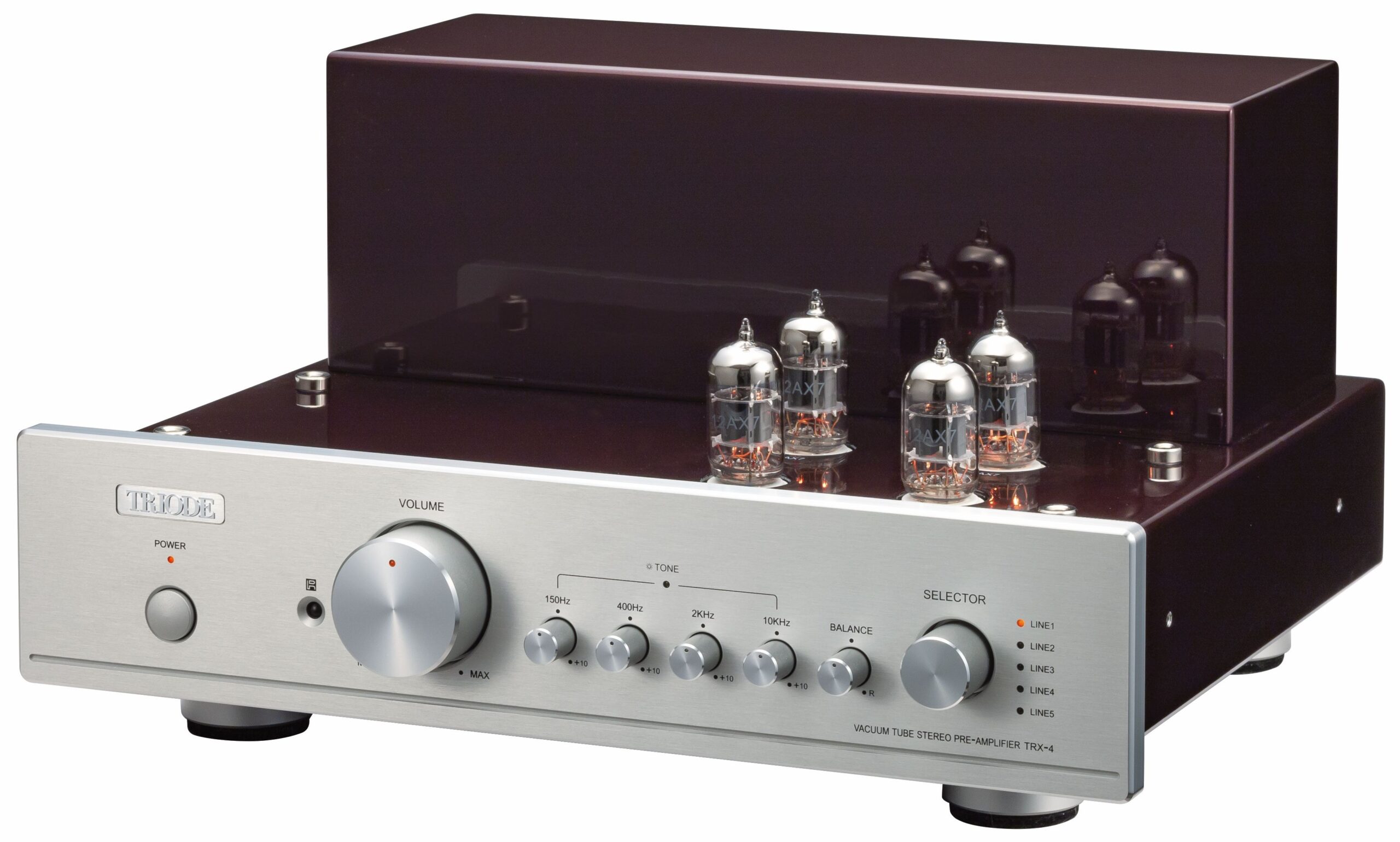

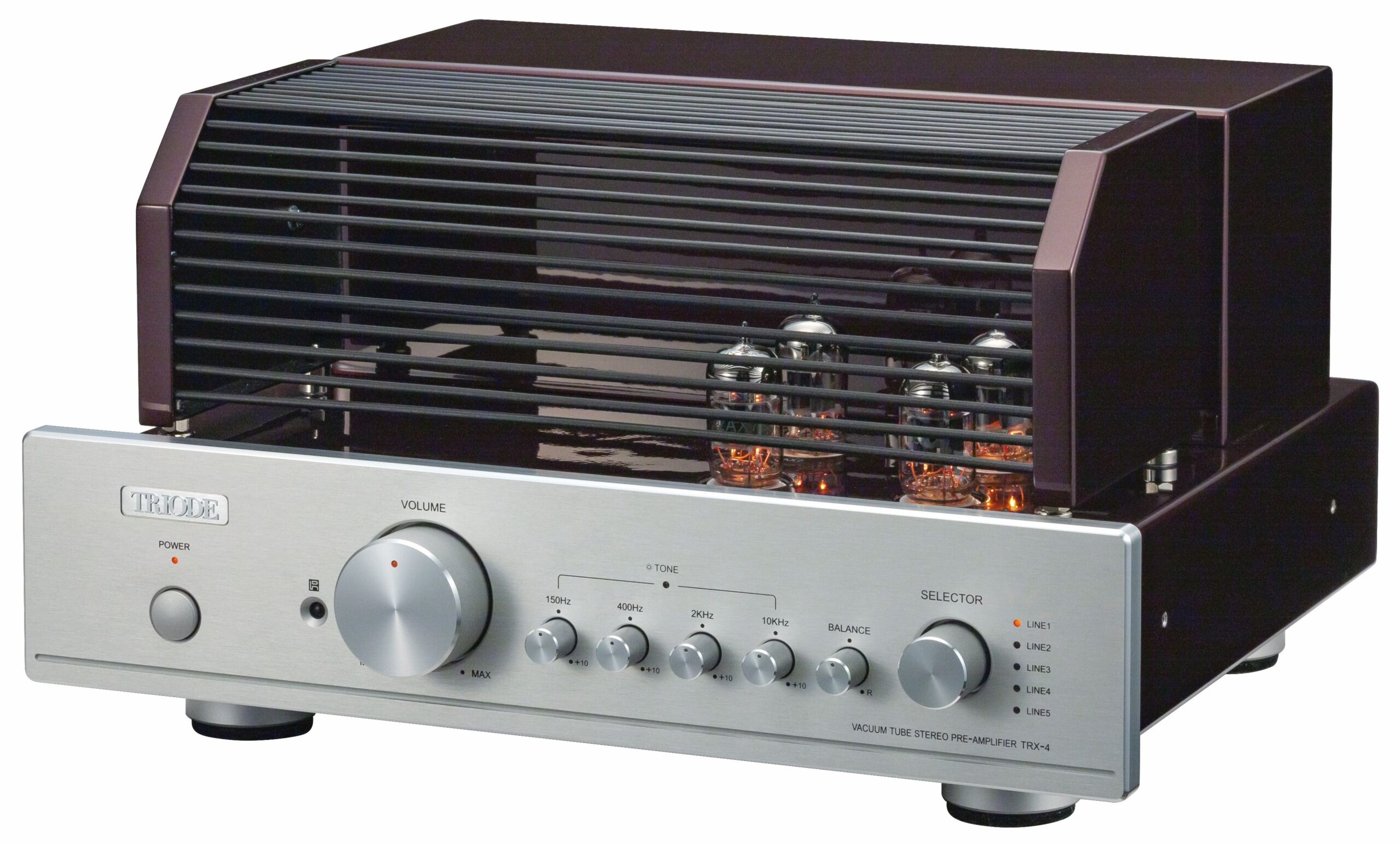

Triode TRX-4 Pre Amplifier
Vacuum tube pre amplifier
Specifications
| Tubes | 12AX7 x 4 |
| Frequency response | 10Hz-100kHz(±2dB) |
| S/N ratio | 91dB |
| Input terminals | RCA unbalanced x 5(LINE1-5) |
| Input sensitivity | 250mV |
| Input impedance | 100k ohm |
| Output terminals | RCA unbalanced x 3(OUT1-3) |
| Output impedance | 700 ohm |
| Equalizer control frequency | 150 , 400 , 2k , 10kHz±10dB |
| Other functions | Remote control (Volume, Mute, Input select, Equalizer on/off) L/R balance control |
| Power consumption | 30W |
| Dimensions | W340mm x D310mm x H185mm |
| Weight | 10.5kg |

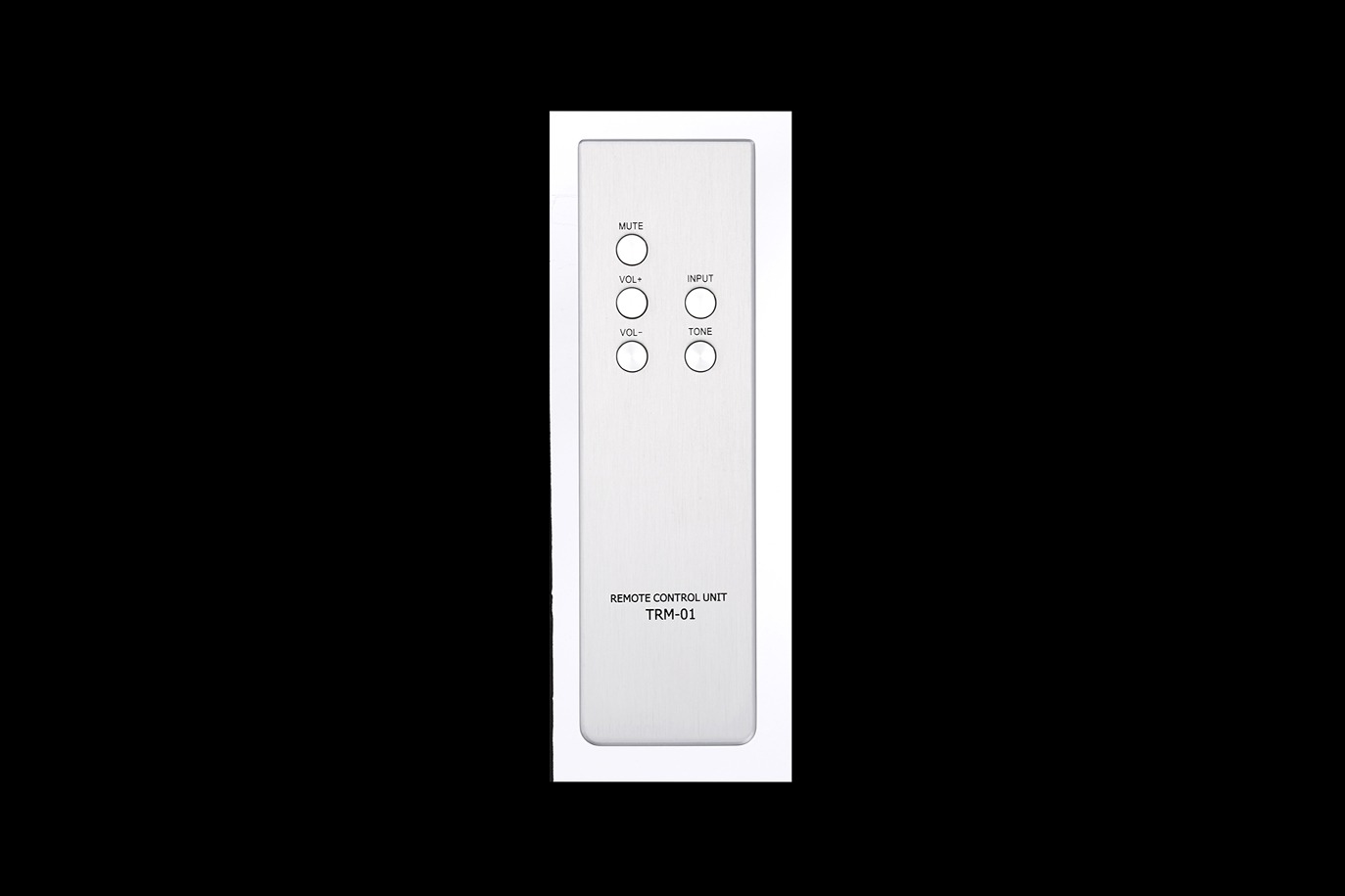

| Accessories | Tube cover, Remote control |
