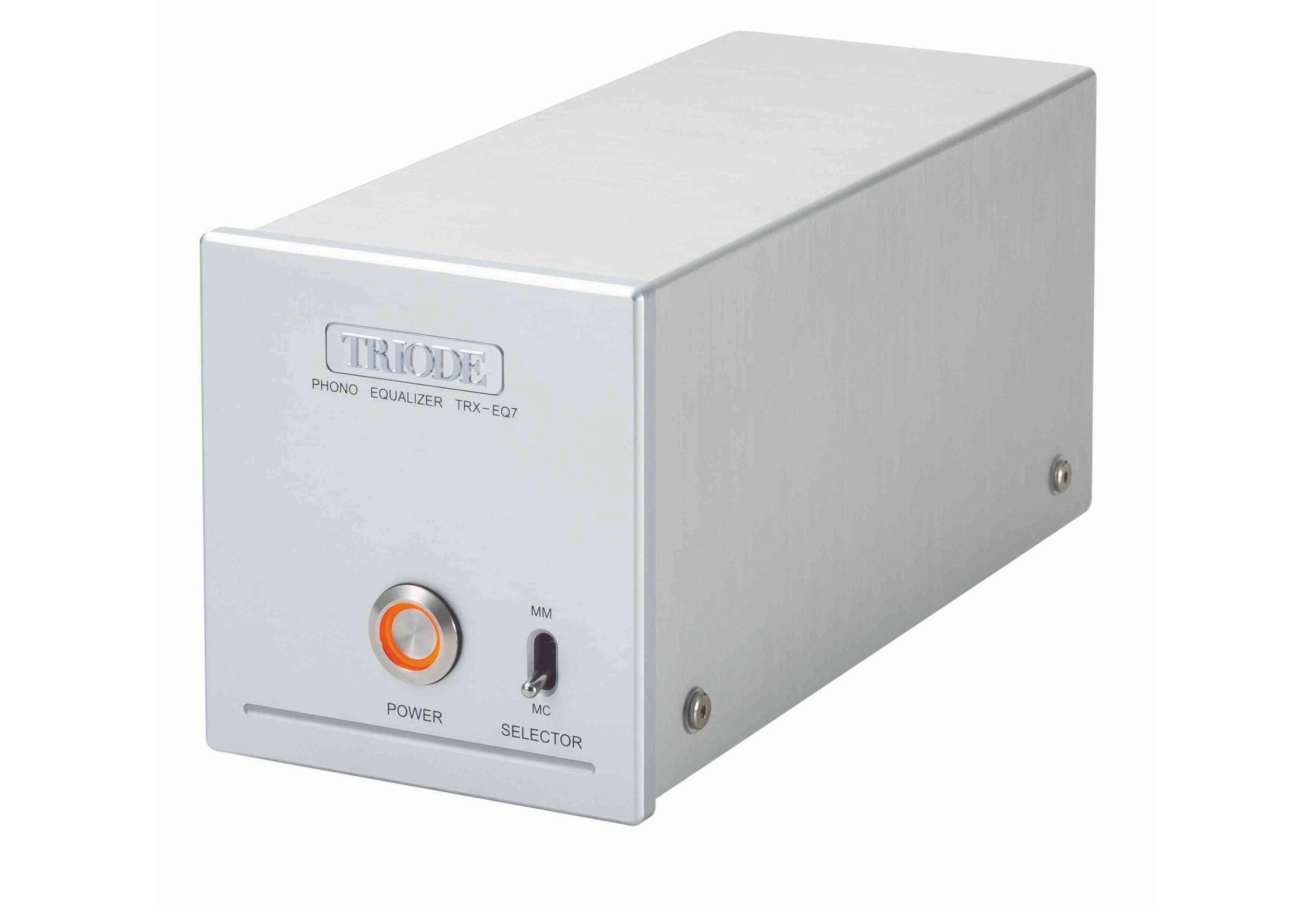

Triode TRX-EQ7 Phono Equalizer Amplifier
Solid-state phono equalizer amplifier
Specifications
| MC circuit | Class A FET |
| RIAA deviation | ±0.5dB(20Hz-20kHz) |
| Total harmonic distortion | 0.025% |
| Channel separation | 70dB |
| Input terminals | 1 (RCA) |
| Input sensitivity | MM 2.5mV, MC 0.25mV |
| Adaptable impedance | MM 47kΩ, MC 4Ω-47Ω |
| Gain | MM 46dB, MC 64dB |
| Output terminals | 1 (RCA) |
| Output impedance | 300Ω |
| Power input | With AC/DC power adapter (DC36V/1A) |
| Dimensions | W90mm x D230mm x H100mm |
| Weight | 1.0kg |
