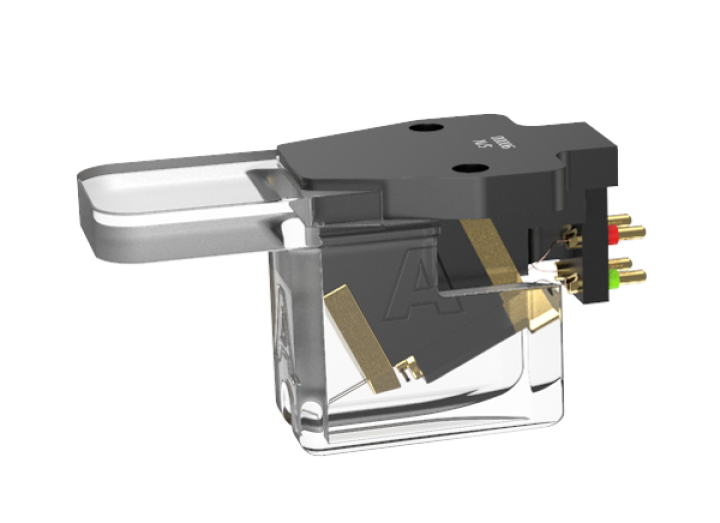

AVID HIFI BORON MC CARTRIDGE
Precision-Engineered Moving Coil Cartridge
The AVID Hifi Boron Cartridge is a low-output moving coil (MC) cartridge meticulously designed to deliver exceptional audio performance. Featuring a boron cantilever and a micro-ridge solid diamond stylus, the Boron ensures precise tracking and detailed sound reproduction, allowing audiophiles to experience their vinyl collections with remarkable clarity and depth.
Innovative Design and Versatility
Building upon the design elements of AVID’s flagship models, the Boron incorporates a 5-axis precision-milled aerospace-grade aluminum body. This construction effectively channels vibrations away from the cantilever assembly, reducing unwanted resonance and enhancing overall sound quality. The cartridge’s square-angled body design and extended cantilever facilitate accurate and easy installation, ensuring optimal alignment for superior playback performance.
The AVID Hifi Boron Cartridge combines advanced engineering and premium materials to provide audiophiles with a high-performance solution for exceptional vinyl playback.
Specification
Type: Moving Coil
Output Voltage: 0.32mV
Frequency Response: 10Hz-45kHz
Channel Separation: 28dB/1kHz
Channel Balance: 0.2dB/1kHz
Tracking Force: 2.0g (±0.2g)
Compliance: 9 x 10⁻⁶ cm/dyne
Internal Impedance: 4.8Ω/1kHz
Load Impedance: >100Ω
Cantilever Material: Boron
Stylus Profile: Micro-Ridge
Stylus Material: Solid Diamond
Contact Radius: 3µm x 70µm
Net Weight: 9.1g
Packaging Dimensions: 200 x 180 x 60mm
Shipping Weight: 1.0kg
