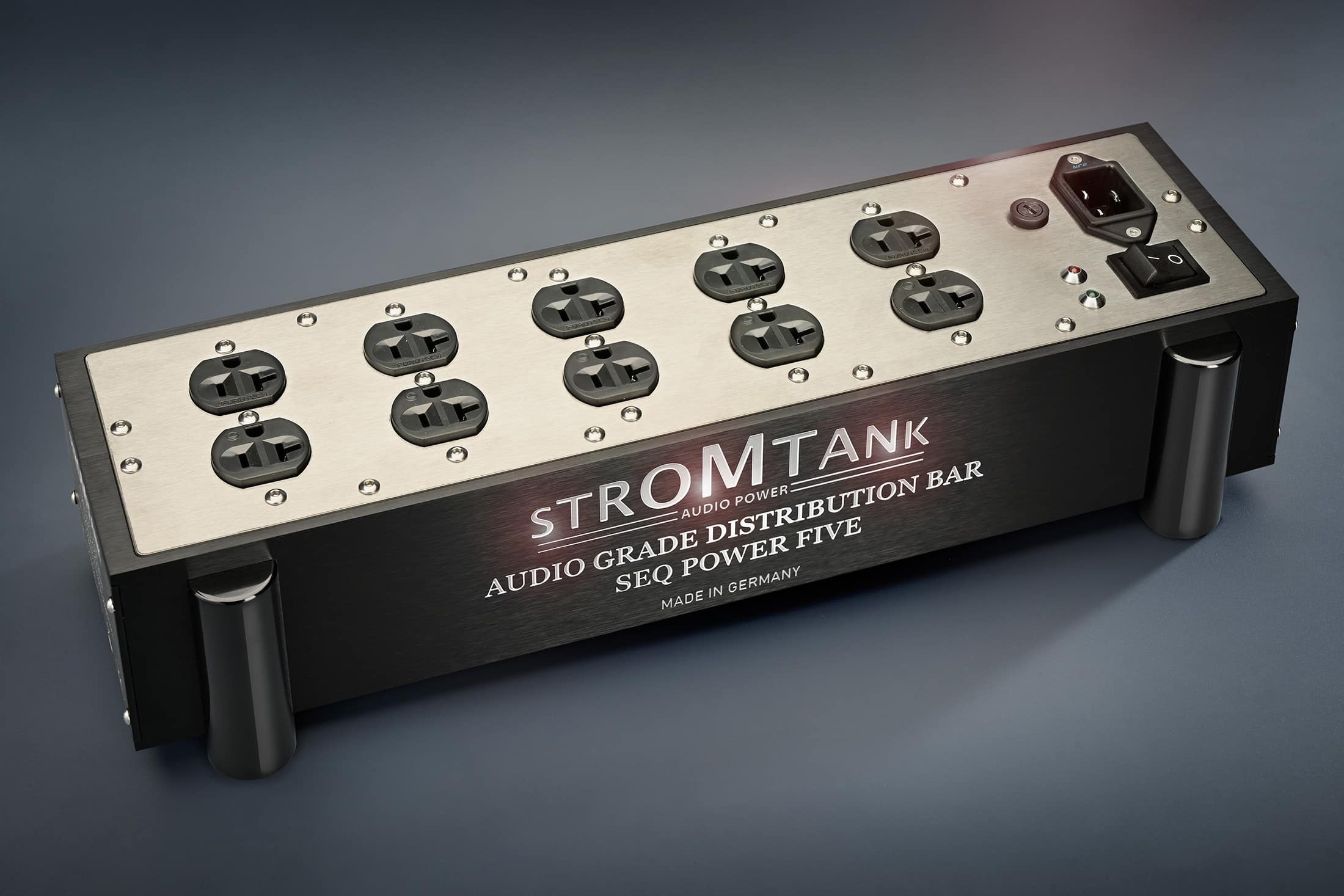

STROMTANK SEQ 5 SEQUENTIAL POWER DISTRIBUTION BOARD
THE technically consistent extension of the StromTank: the SEQ-5 power strip. “SEQ” stands for sequential, because the sockets are switched with a time delay to protect against harmful current peaks. All five custom-made US receptacles are equipped with pure, rhodium-coated copper contacts and the DDS filtering, which effectively prevents the backflow of interference signals into other devices when connecting digital devices, as well as interference from the mains. The solid housing made of stainless steel with aluminium and magnesium reliably prevents radio interference. And even a phase tester is not missing.
Comes in AU power points.
Outlets (receptacles):
- 5x Furutech high-performance Schuko sockets (NCF-quality)
- contact: pure Copper, Rhodium plated for highest contact quality
- each outlet has multi-string pure copper wiring
AC-in:
- 230V – 50Hz
- power max total: 3.200 W ( 230Vac 50Hz – 20A)
AC inlet – 20A max:
- contact: Nano Crystal Formular (NCF)
- fuse: cartridge fuse 6.3 x 32 / slow blown
DDS Filter (Digital Distortion Suppression)
- outlet no.1 – includes DDS-function high frequency trap, fully shielded, to reduce digital distortion on power line
- outlet no. 2-5 = PURE (special) straight wired for using high current audio components
Electronic:
- processor board for sequential switching function equipped with Microchip PIC 16
- 4x high-performance latching relays with “high power” contact
- contact: silver NCM plated (Nickel Chrome Molibdenum) that realizes a 16-A high switching Current.
SEQ outlets:
- will be switched “ON” step by step
- to reduce peak current on the main power line
- delay from step to step = 1 second
Case:
- Aluminum Magnesium Silicium ( AlMgSi 1)
- brushed and anodized, surface finish available: black or silver
- mounting plate: stainless steel
- sound optimized copper wiring for low inductivity
Phase control indicator: (red LED)
- mechanical resonance reduction: stainless Steel on Aluminium/ Magnesium
Dimensions:
- W* L* H: 80 x 440 x 120 mm – excluding feet
- 110 x 440 x 130 mm – including feet
- weight: 5 kg net
